Axis
|

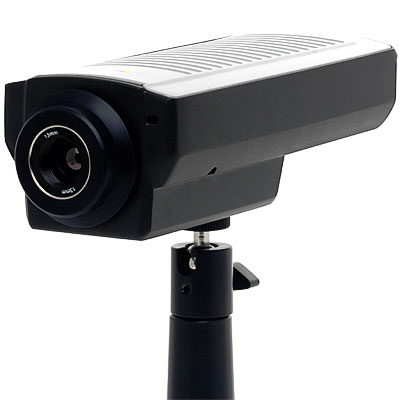

Axis Q1910
|

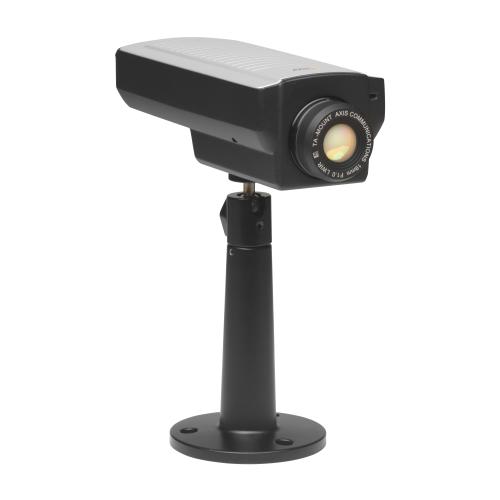

Axis Q1921
|

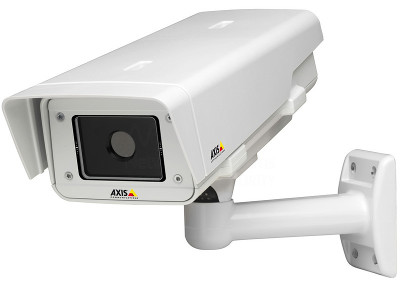

Axis 1910-E
|

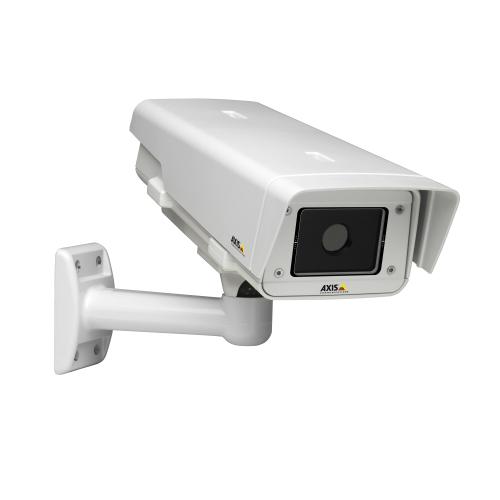

Axis Q1921-E
|
|
 Indoor
|
 Full Outdoor
|
 Full Outdoor
|
 Full Outdoor
|
|
Image Sensor
|
Uncooled Vox Micro bolometer
|
Uncooled Vox Micro bolometer
|
Uncooled Vox Micro bolometer
|
Uncooled Vox Micro bolometer
|
|
Horizontal Angle of View
|
17°
|
10mm: 55° 19mm: 29°
|
17°
|
10mm: 55° 19mm: 29°
35mm: 15° 60mm: 9°
|
|
Lens
|
13mm / F1.25
|
10mm: 200 / 220 | 460 / 515
19mm: 380 /415 | 870 / 950
|
13mm / F1.25
|
10mm: 200 / 220 | 460 / 515
19mm: 380 /415 | 870 / 950
35mm: 700 / 765 | 1610 / 1760
60mm: 1200 / 1312 | 2760 / 3020
|
|
Sensitivity
|
NetD<100mK
|
NetD<100mK
|
NetD<100mK
|
NetD<100mK
|
|
Video Compression
|
H.264 MPEG-4
|
H.264 MPEG-4
|
H.264 MPEG-4
|
H.264 MPEG-4
|
|
Max Video Resolution (Pixels)
|
160 x 128
|
384 x 288
|
160 x 128
|
384 x 288
|
|
Frames per Second
|
8.33
|
8.33
|
8.33
|
8.33
|
|
Audio Support
|
Two-Way
|
Two-Way built in mic
|
Two-Way
|
Two-Way built in mic
|
|
Alarm Inputs/Outputs
|
2 configurable inputs / outputs
|
2 configurable inputs / outputs
|
2 configurable inputs / outputs
|
2 configurable inputs / outputs
|
|
Intelligent Video
|
Motion Detection / Audio Detection
Tampering alarm / Application Platform
|
Motion Detection / Audio Detection
Tampering alarm / Application Platform
|
Motion Detection / Audio Detection
Tampering alarm / Application Platform
|
Motion Detection / Audio Detection
Tampering alarm / Application Platform
|
|
Security
|
Multiple user access levels w/password protection; IP address filtering; HTTPS encryption; IEEE 802.1X access
|
Multiple user access levels w/password protection; IP address filtering; HTTPS encryption; IEEE 802.1X access
|
Multiple user access levels w/password protection; IP address filtering; HTTPS encryption; IEEE 802.1X access
|
Multiple user access levels w/password protection; IP address filtering; HTTPS encryption; IEEE 802.1X access
|
|
Lens Changeable
|
✗
|
✓
|
✗
|
✓
|
|
Power Over Ethernet (IEEE 802.3AF)
|
Power Over Ethernet IEEE 802.3AF Class 3
|
Power Over Ethernet IEEE 802.3AF Class 3
|
Power Over Ethernet IEEE 802.3AF Class 3
|
Power Over Ethernet IEEE 802.3AF Class 3
|
|
Serial Connectors
|
RS-422 / RS-485
|
RS-422 / RS-485
|
RS-422 / RS-485
|
RS-422 / RS-485
|
