Dell
|

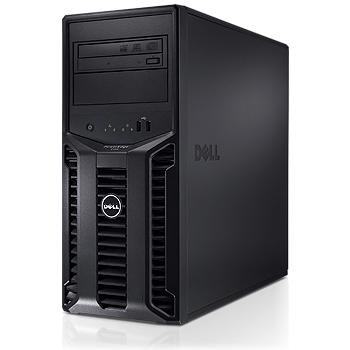

PowerEdge T110 Tower Server
|

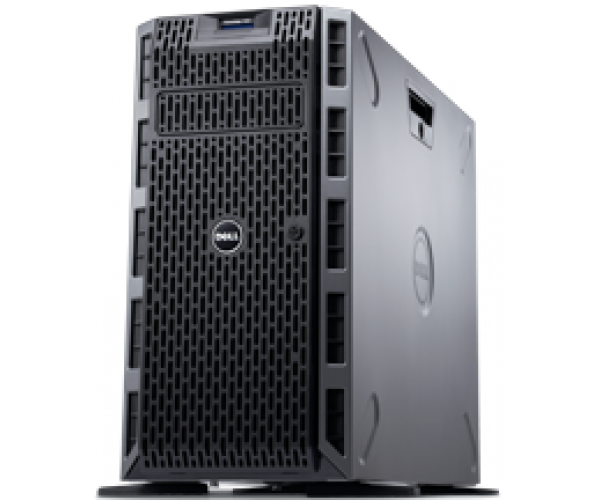

PowerEdge T320 Tower Server
|
PowerEdge T420 Tower Server
|
PowerEdge T620 Tower Server
|
|
An ideal first server for small business with the right combination of value, reliability, collaboration and data protection features to improve your business continuity and productivity
|
Deliver Reliable performance for your core business applications with the robust flexibility of the PowerEdge™ T320 tower server
|
Help deliver robust performance, scalability and reliability to your organization with the ample power, memory and I/O bandwidth of the PowerEdge™ T420 tower
|
Process everything quickly with the PowerEdge™ T620 tower server: high performance and enterprise availability with built-in room for growth
|
|
Processor
|
Intel® Xeon® processor E3-1200 product family
|
Intel® Xeon® processor E5-2400 product family
|
Intel® Xeon® processor E5-2400 product family
|
Intel® Xeon® processor E5-2600 product family
|
|
Processor Sockets
|
1
|
1
|
2
|
2
|
|
Cache
|
-
|
2.5MB per core, core options: 2, 4 ,6 ,8
|
2.5MB per core, core options: 2, 4 ,6 ,8
|
2.5MB per core, core options: 2, 4 ,6 ,8
|
|
Memory
|
Up to 32GB (4 DIMM slots): 1GB/2GB/4GB/8GB DDR3
up to 1600MHz
|
Up to 192GB (6 DIMM slots): 2GB/2GB/4GB/8GB/16GB/32GB DDR3
up to 1600MT/s
|
Up to 384GB (12 DIMM slots): 2GB/2GB/4GB/8GB/16GB/32GB DDR3
up to 1600MT/s
|
Up to 768GB (24 DIMM slots): 2GB/2GB/4GB/8GB/16GB/32GB DDR3
up to 1600MHz
|
|
Drive Bays
|
Cable options available: Up to siz 2.5" SATA SSD or SAS drives or up to four 3.5" SAS, nearline SAS, or SATA drives
|
Choose from four 3.5" cabled, eight 3.5" hot-plug, or sixteen 2.5" hot-plug drive bays
|
Choose from four 3.5" cabled, eight 3.5" hot-plug, or sixteen 2.5" hot-plug drive bays
|
Choose from eight 3.5" hot-swap drive bays plus four PCIe SSD drives (optional), twelve 3.5" hot-swap drive bays, sixteen 2.5" hot-swap drive bays plus four PCIe SSD drives (optional), or thirty-two 2.5" hot-swap drive bays
|
|
Slots
|
4 PCIe G2 slots:
- Two x8 slots
(one with x16 connectors)
- One x4 slot (with x8 connector)
- One x1 slot
|
5 PCIe slots:
- One x16 slot with x16 bandwidth, 3.0, full-length, full-height
- One x8 slot with x4 bandwidth, 3.0, half-length, full-height
- One x8 slot with x4 bandwidth, 2.0, half-length, full-height
|
6 PCIe slots:
- Two x16 slots with x16 bandwidth, 3.0, full-length, full-height
- One x8 slot with x4 bandwidth, 3.0, half-length, full-height
- One x8 slot with x4 bandwidth, 2.0, half-length, full-height
|
7 PCIe slots:
- Four x16 slots with x16 bandwidth, full-length, full-height
- Two x8 slots with x8 bandwidth, full-length, full-height
- One x8 slot with x4 bandwidth, full-length, full-height
|
